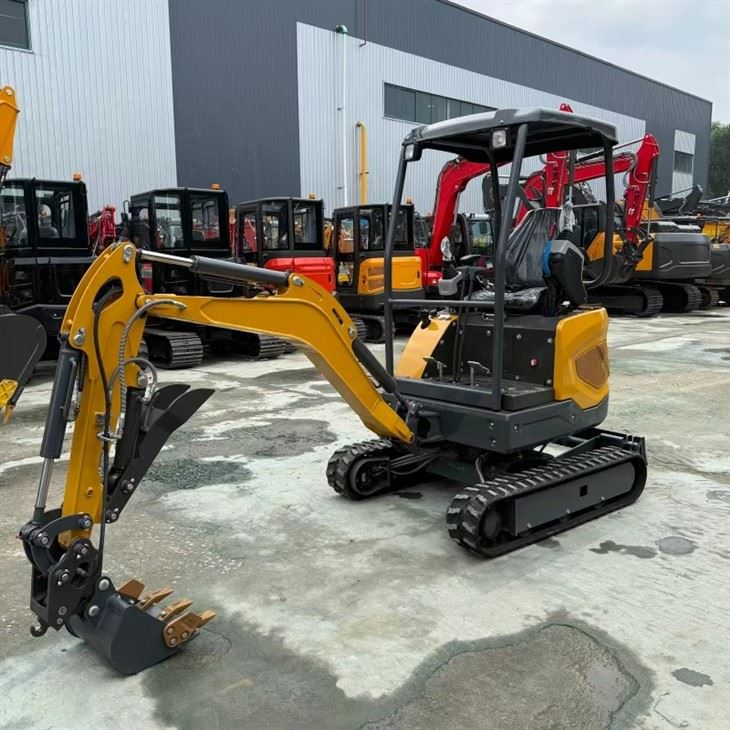

Mini Excavator 600 kg

Product Description:

The JH8006 excavator has gained widespread market recognition due to its compact size, transport flexibility, and high cost-effectiveness.

Key Features

The JH8006 is JIAHE's latest compact tracked excavator, equipped with a gasoline engine suitable for sale in Europe and America. Its zero-tail design is ideal for confined spaces and light-duty operations. Weighing only 640 kg and with a 700 mm width, it easily enters narrow working environments such as farms, gardens, elevators, and indoor spaces.

Compact Power:

Loncin G300FA gasoline engine, producing 6.8 kW at 3600 rpm, meets EPA 4 and Euro 5 emission standards, making it ideal for precise operations in confined spaces.

Reliable Hydraulic System:

Equipped with a stable pump, valves, swing motor, and drive motor, ensuring smooth operation.

Flexible Chassis:

Rubber tracks reduce ground damage, suitable for soft or uneven terrain.

• Lightweight and Flexible:

Its open-top design and minimal footprint allow it to operate in narrow passageways and indoor spaces.

• Precise Excavation:

0.01m³ bucket capacity enables precise excavation for small projects.

• Applications:

• Interior renovation of houses, basement and attic earthwork, demolition debris removal

• Shallow foundation excavation for private gardens, guesthouse landscaping, and swimming pools

• Pit digging for fruit and vegetable greenhouses and nurseries, and shallow irrigation ditch construction

• Laying small pipelines in narrow alleyways of residential areas

• Land preparation for small farms and livestock farms

• Agent recruitment is underway. Please inquire for details.



Model	JH8006
ENGINE	Engine Model	Loncin / G300FA
	Water cooling	Air Cooled
	Turbo-charging	Normally Aspirated
	Rated power/speed	6.8kw/2500rpm
	Maximum torque/speed	20.3N/2500rpm
	Displacement	0.302L
Main performance	Swing speed	12r/min
	Grade-ability	35%
	Bucket digging force	7.45KN
	Arm digging force	4.5KN
	Maximum tractive force	3.8*2KN
Hydraulic system	Main pump	Tianjing xingzou
	Rated flow of main pump	19.4L/Min
	Main safety valve pressure	20MPa
Undercarriage	Travel speed(H/L)	1.8km/h
	Ground pressure	18.5KPa
	Track roller number	2*2
	Track number	35
Oil Capacity	Fuel tank capacity	5.5L
	Hydraulic tank capacity	8L
	Engine oil capacity	0.95L
	Coolant	/
	Final drive	/



MACHINE SIZE	Overall length	2235mm
	Overall width	700mm
	Overall height	1619mm
	Overall height(cab top)	2117mm
	Counter weight clearance	376mm
	Min.ground clearance	160/52mm
	Min.tail swing radius	619mm
	Track ground length	773mm
	Track length	1081mm
	Track gauge	550mm
	Track width	150mm
	Track shoes width(std)	150mm
	Turn-able width	700mm
WORKING RANGE	Max.digging height	1863mm
	Max.dumping height	1257mm
	Max.digging depth	978mm
	Max.vertical wall digging depth	601mm
	Max.digging reach	2260mm
	Max.digging reach at ground level	2174mm
	Min.swing radius	1110mm
	Min.height at min.swing radius	2117/1619mm
	Counter weight height	376mm
	Ground length(Transportation)	2183mm
Standard	Length of boom	1010mm
	Length of arm	545mm
	Bucket capacity	0.01m³
