Mini Excavator 1.6 Ton
Engine power: 18.1/ 10.2KW
Machine weight: 1400KG
Bucket capacity:0.03m³
Products Description
Standard configuration includes a LAIDONG KM385B-216 engine (18.1KW), with optional LAIDONG EURO V engine or Kubota D722 engine.
Hydraulic pilot servo operation system for easy and smooth operation.
With hydraulic breaker pipeline, adaptable to various attachments.
Standard open cabin (Canopy), optional closed cabin,air conditioner

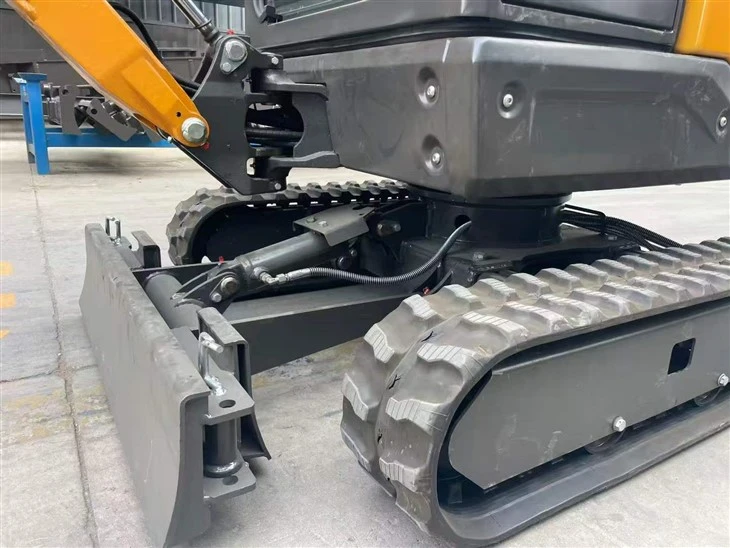

With bulldozer blade, zero tail, with swing boom.
Rubber track width: 200mm.
Optional extendable chassis, 990mm/1300mm.
Optional double high-low speed.
Machine weight: 1400kg.
Bucket capacity: 0.025³.
The JH8016 excavator is the optimal choice for 1-2 ton excavators, featuring a hydraulically sensitive system, smooth hydraulic operation, and various engine options. Multiple configurations are available. A great helper for gardening, farming, and construction projects.
Product Specifications
|
>>>> SPECIFICATIONS: |
||
|
ENGINE |
Make |
LAIDONG/ Kubota |
|
Power |
18.1KW/10.2KW |
|
|
Number of cylinder |
3 |
|
|
TRACK SYSTEM |
Maximum Travel speed |
3.5/2.1km/h(optional) |
|
Width of track shoe |
200mm |
|
|
PERFORMANCE PARAMETER |
Standard Bucket capacity |
0.025m³ |
|
Swing speed |
12~13rpm |
|
|
Maximum Grade ability |
58%(30°) |
|
|
Maximum Bucket digging force |
9KN |
|
|
Maximum Arm digging force |
5.5KN |
|
|
Hydraulic system pressure |
20Mpa |
|
|
Machine weight(with canopy) |
1600kg |
|
|
Boom length |
1700mm |
|
|
Arm length |
800mm |
|
|
Fuel tank capacity |
14.5L |
|
|
Hydraulic oil tank capacity |
14.5L |
|
|
MACHINE SIZE |
Overall dimension (L*W*H) |
3329mm*990/1300mm*2267mm |
|
Axle base |
1190mm |
|
|
Length of rubber track |
1600mm |
|
|
Track gauge |
790/1100mm |
|
|
Minimum Ground clearance |
153mm |
|
|
Swing radius at tail |
655mm |
|
|
Swing radius at front |
1812mm |
|
|
WORKING RANGE |
Maximum Digging height |
2955mm |
|
Maximum Dumping height |
2077mm |
|
|
Maximum Digging depth |
2017mm |
|
|
Maximum Vertical |
1610mm |
|
|
Maximum Digging distance |
3529mm |
|
|
Maximum Lifting height |
236mm |
|
|
Maximum Cutting depth |
229mm |
|
|
Boom swing angle(Left/Right) |
50°/52° |
|
