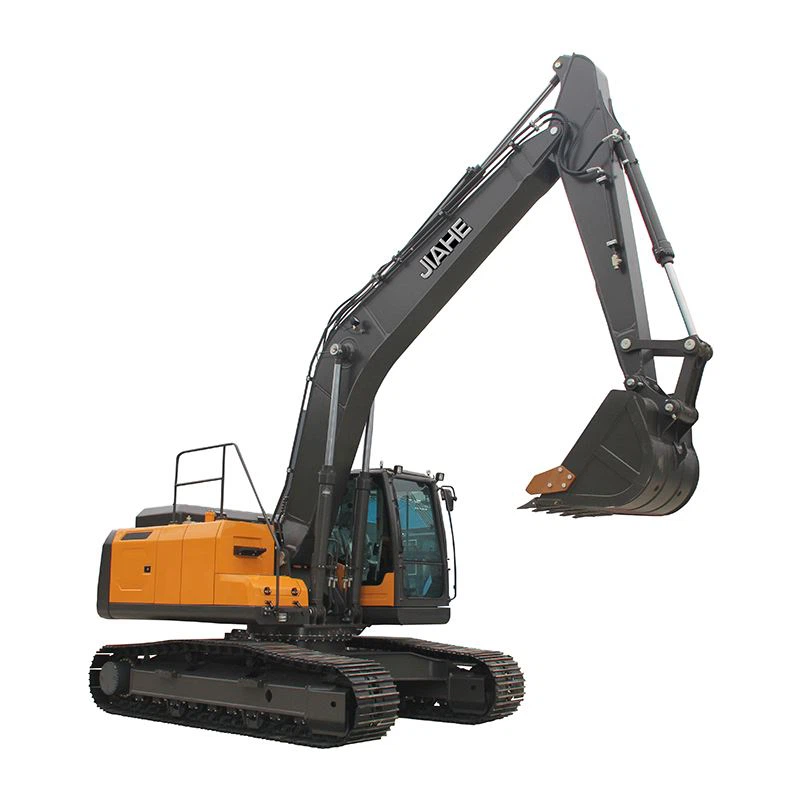

23 Ton Excavator Machine Excavator



JH8230 23 ton

Crawler excavator

Operating weight: 23000kg

Bucket capacity: 1.1m³



The precision matching design combined with energy-saving control optimizes the coordination between the power system and hydraulic components, effectively reducing fuel consumption while maintaining high operational efficiency. This intelligent integration ensures the excavator runs economically without compromising performance.

Turbocharging technology enhances its adaptability to plateau environments, efficiently addressing the low-oxygen challenges at high altitudes to maintain stable power output in mountainous or elevated work zones.

The funnel-shaped fan cover adopts an aerodynamic structure to significantly increase air intake, while simultaneously enhancing the system's heat dissipation capacity. This design ensures the engine and hydraulic system remain at ideal operating temperatures even during prolonged high-load operations, preventing overheating and sustaining continuous efficiency. An advanced hydraulic system further improves performance by enhancing digging force and operational smoothness, enabling precise and responsive movements for complex tasks.

The improved track frame cross-section is engineered to minimize soil accumulation and reduce sprocket wear, thereby enhancing durability in rough terrain. Enlarged front, side, and rear windows expand the operator's vision, drastically reducing blind spots and improving safety and efficiency in challenging working conditions.

Maintenance convenience is prioritized with key components like oil filters and pilot oil filters positioned at ground-level accessible locations for easy inspection and replacement. The large-capacity fuel tank meets the demands of long-term continuous operation, while the extra-large tool box provides ample space for storing spare items.

High-quality parts not only extend the service life of the excavator but also reduce maintenance frequency and extend maintenance cycles, optimizing overall cost-effectiveness.





Specifications
Bucket Capacity	1.1 m³
Swing Speed	11 - 13 rmp
Gradeability	30 °
Max.Bucket Digging Force	140 KN
Max.Arm Digging Force	99 KN
Engine Model	8.5.9
Power/revolution speed	129 KW/2200 rmp
Tire Model	-
System Pressure	34 MPa
Working Range
Max.Digging Height	9410 mm
Max.Dumping Height	6730 mm
Max.Digging Depth	6480 mm
Max.Vertical Digging Depth	5925 mm
Max.Digging Radius	9850 mm
Min.Swing Radius	3555 mm
Overall Dimensions
Dimension LengthWidthHeight	9590×2980×3185 mm
Cabin Height	3060 mm
Axle Base	3655 mm
Wheel(track) Distance	2380 mm
Minimum ground clearance	470 mm
Tail Swing Radius	2880 mm
