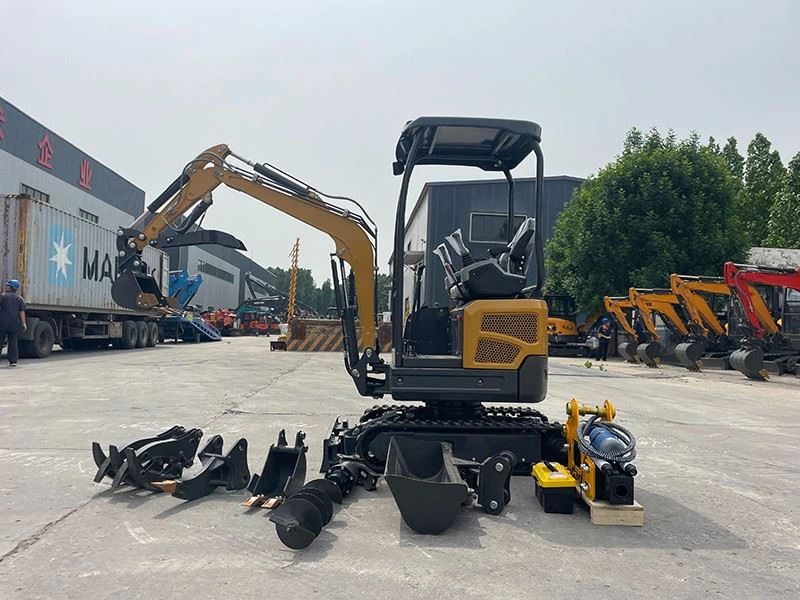

Mini Digger 1.5 Ton Excavator



JH15 1.5 Ton

Crawler Excavator

Operating weight: 1500kg

Bucket capacity: 0.025 m³



This 1.5-ton small excavator adopts the industry-leading tailless slewing design. The length of the whole machine is controlled at 2.5 meters, and it can operate freely in a narrow space of 1.5 meters wide.

The equipment is equipped with a hydraulic pilot control system. With the ergonomic suspension seat, the operating comfort is greatly improved, which is suitable for long-term continuous operation.

The working pressure of the core hydraulic system reaches 18MPa, and the double-circuit pipeline is standard. It can quickly connect a variety of accessories such as breaker hammers, auger drills, hydraulic shears, etc.

The electric telescopic crawler device can be optionally equipped, and the crawler width can be adjusted within the range of 0.9-1.3 meters. The narrow mode is suitable for indoor and narrow lane operations, and the wide mode can improve the stability on soft ground.





Municipal engineering: subway entrance and exit renovation, ancient tree transplanting, smart manhole cover installation

Building decoration: basement excavation, indoor demolition, apartment renovation and other fine engineering

Agricultural and forestry operations: orchard management, farm management, organic greenhouses, aquaculture, greenhouse construction and other light projects

Emergency repair: subway repair, post-disaster clearance and other emergency tasks

Special places: warehouse loading and unloading, ship repair and other confined space operations

This model is equipped with a Kubota engine that meets the Euro V emission standards, and with the intelligent power matching system, it can reduce fuel consumption while ensuring the rated power. The working device adopts a reinforced design, and the arm's anti-bending ability is improved. The whole machine is easy to maintain.









	JH8015
	Specifications
	Bucket Capacity	0.025 m³
	Swing Speed	11 - 13 rmp
	Gradeability	30 °
	Max.Bucket Digging Force	9 KN
	Max.Arm Digging Force	5.5 KN
	Engine Model	D722
	Power/revolution speed	10.2 KW/2500 rmp
	System Pressure	20 MPa
	Working Range
	Max.Digging Height	2961 mm
	Max.Dumping Height	2083 mm
	Max.Digging Depth	1953 mm
	Max.Vertical Digging Depth	1859 mm
	Max.Digging Radius	3519 mm
	Max.Dozer Blade Lifting Distance	224 mm
	Max.Dozer Blade Cutting Distance	237 mm
	Overall Dimensions
	Total Length	3335/990/1300/2270 mm
	Total Width	990/1300 mm
	Total Height	2290 mm
	Cabin Height	2270 mm
	Axle Base	1215 mm
	Wheel(track) Distance	790 mm
	Minimum ground clearance	153 mm
	Tail Swing Radius	655 mm
