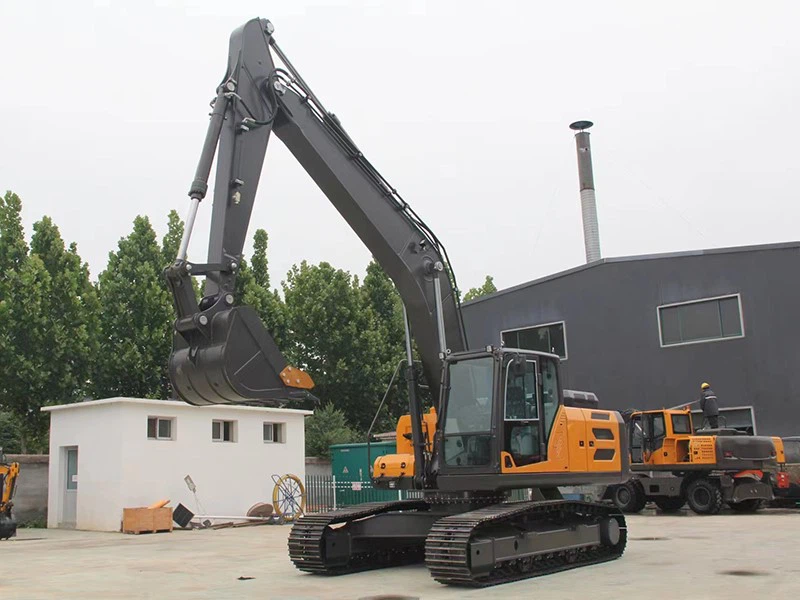

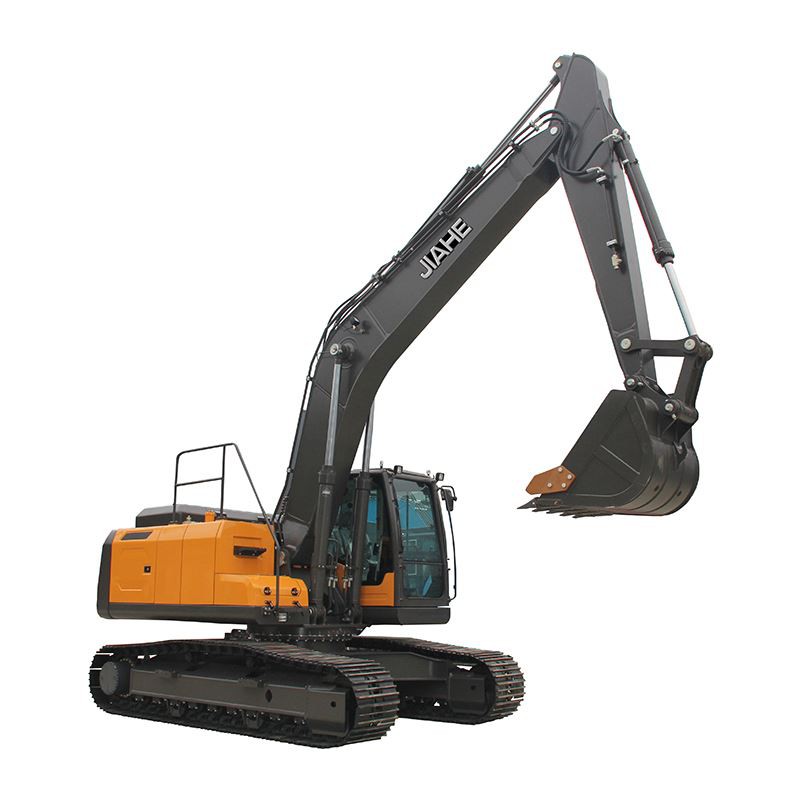

Crawler Excavator Machine Grabber Arm 33 Ton



JH8330 33 Ton

Crawler excavator

Operating weight: 33000kg

Bucket capacity: 1.6m³



control to optimize power-hydraulic system coordination, delivering robust performance while minimizing fuel consumption. This intelligent pairing adjusts output in real-time to balance high-intensity operation with economic efficiency, ideal for prolonged workloads.

Turbocharging technology enhances adaptability in low-oxygen plateau environments by boosting air intake density, ensuring consistent power output at high altitudes. The funnel-shaped fan cover, designed for aerodynamic efficiency, increases air intake and accelerates heat dissipation, preventing overheating during continuous high-load tasks to maintain non-stop operation.

Internationally recognized hydraulic components-paired with buffer cylinder design and dual pump confluence technology-enable precise motion control and durable performance. The buffer structure absorbs operational vibration to reduce wear, while dual pumps maximize flow to boom, arm, and bucket cylinders for faster cycle times and enhanced digging efficiency.

The optimized crawler frame minimizes soil accumulation, while the forged bucket rod and integral welded boom enhance impact resistance through stress distribution design. The wear-resistant bucket, constructed from high-tensile steel, withstands heavy-duty loading in rugged terrain, ensuring long-term reliability in demanding.

Enlarged front/side/rear windows create a panoramic view, reducing blind spots for safer operation in congested areas. The ergonomic cab, equipped with air conditioning/heating, features shock-absorbing seats and intuitive controls, balancing operator comfort with visibility during extended shifts.

Maintenance accessibility is prioritized: ground-level accessible filters and checkpoints simplify routine upkeep, while the large-capacity fuel tank supports continuous operation. The extra-large tool box stores spare parts, and high-quality components extend service life, reducing maintenance frequency and long-term ownership costs.





Specifications
Bucket Capacity	1.6 m3
Swing Speed	0 - 11 rmp
Gradeability	35 °
Max.Bucket Digging Force	244 KN
Max.Arm Digging Force	200 KN
Power/revolution speed	194/2200 KW/rmp
Tire Model	–
System Pressure	35 MPa
Working Range
Max.Digging Height	10491 mm
Max.Dumping Height	7625 mm
Max.Digging Depth	6437 mm
Max.Vertical Digging Depth	5831 mm
Max.Digging Reach	10709 mm
Min.Swing Radius	3643 mm
Overall Dimensions
Dimension LengthWidthHeight	11015×3200×3168 mm
Cabin Height	3168 mm
Axle Base	3800 mm
Wheel(track) Distance	2590 mm
Minimum ground clearance	470 mm
Tail Swing Radius	3480 mm
