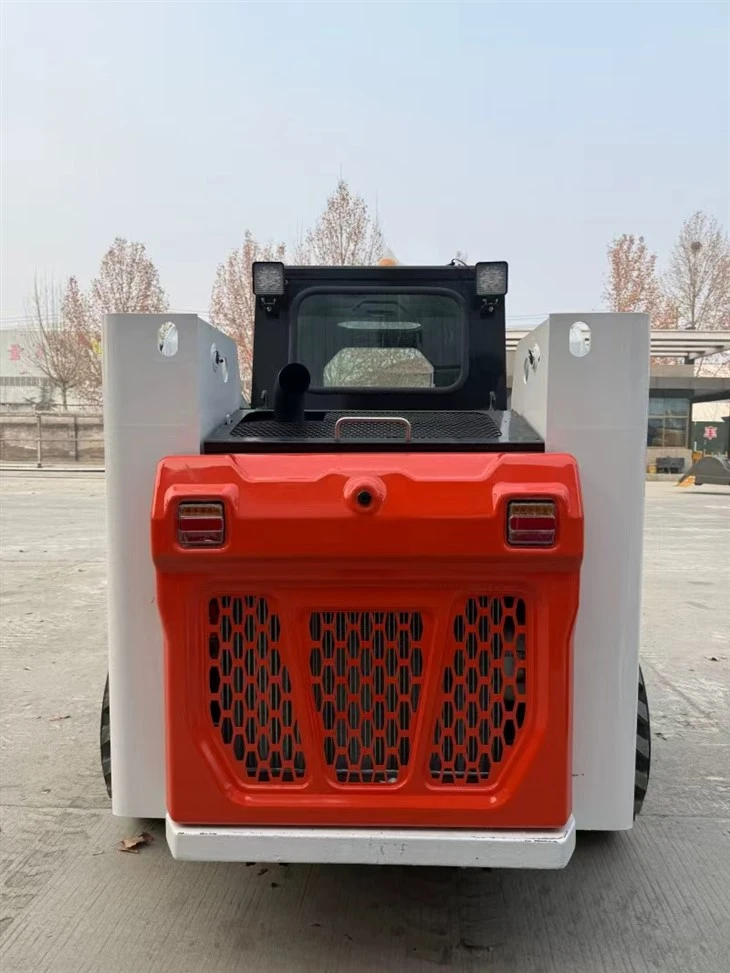

Track Skid Steer Loader 1.2 Ton
Engine power: 55kw/ 50.2kw/ 53.4kw
Machine weight: 4200kg
Operating capacity: 1260kg
Bucket capacity:0.07m³
Products Description
Hydraulic joystick control
High quality Hydraulic system
Double speed , speed can be 18km/h
Big flow 91L/min, Combined flow 120L/min. Optional 130L extra big flow
Deluxe cab with air conditioning and premium cushioned seating
Air suspension seat
Bucket floating function
Large display screen
Side-opening lap bar safety interlock
Rear-view camera
Automatic parking brake system
Lift arm safety support
Rear-tilting cab for easy maintenance
Cast iron counterweight
Pump directly connected to motor for more stable operation
Track type that fit for muddy working environments
JIAHE JH7120T tracked skid steer loader is an all-rounder machine in narrow and complex working conditions. The machine features an pump direct drive motor, closed-loop hydrostatic walking system, simplifying the transmission structure for efficient and durable power delivery and smooth, seamless operation. The rubber track chassis offers excellent off-road capability, conquering muddy, soft ground, and even grassy landscape construction sites. Its powerful engine and reliable load-bearing structure allow for diverse operations including loading, crushing, and sweeping. Standard quick hitch interfaces allow for easy changing various attachments, truly achieving multifunction. The the layout of user-friendly cab, wide vision, and convenient maintenance design reflect Jiahe's dedication to craftsmanship in the construction machinery industry. Its balanced and powerful comprehensive performance and exceptional cost-effectiveness continue to earn global customer recognition. Jiahe focuses on creating high-value construction equipment; only through hands-on experience can one truly appreciate the outstanding capabilities of the JH7120T.
Product Specifications
|
Engine model |
Xinchai/ Yanmar/ Kubota |
|
Rated power/speed |
55kw/ 50.2kw/ 53.4kw |
|
Standard system pressure |
21MPa |
|
Pilot pressure |
2.5Mpa |
|
Bucket capacity |
0.54 m³ |
|
Travel speed |
11.5km/h |
|
Rated load |
1200kg |
|
Length without bucket |
2657 mm |
|
Length with bucket |
3602 mm |
|
Bucket width |
1850 mm |
|
Total height |
1983 mm |
|
Maximum height of bucket pin |
2751 mm |
|
Maximum height of horizontal bucket |
2588 mm |
|
Departure angle |
20° |
|
Maximum bucket retraction angle on flat ground |
21.3° |
|
Tilting height |
1890 mm |
|
Loading distance at maximum unloading height |
682 mm |
|
Ground track length |
1534 mm |
|
Ground clearance |
188 mm |
|
Maximum working height |
3659 mm |
|
Tail length |
806 mm |
|
Bucket tilting angle at maximum height |
81.2° |
|
Tilting angle at maximum height |
54.1° |
