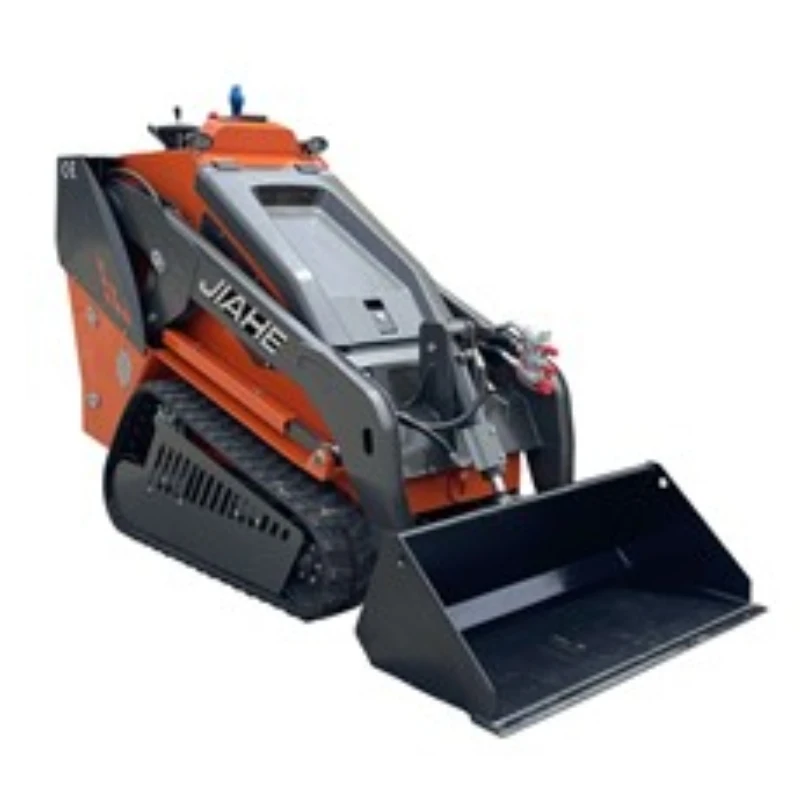

Walk Behind Diesel Crawler Mini Skid Steer Loader



Mini Skid Steer Loader

Operating weight: 1185kg

Bucket capacity: 0.12 m³





1. The LZ400 uses a 4-link mechanism, the bucket is not retracted and lifted, and the material is not easy to spill, it is operated by accessories, and the working section can run vertically.

2. Add a balance valve to keep the balance position during the bucket lifting process.

3. Equipped with a safety support rod for safe protection and convenient maintenance.

4. The foot pedal can be lifted up, with a locking function and a comfortable position.

5. Add a water cup holder, and you can carry a water cup on the car.

6. The waist support pad is used, which is a humanized design.

7. The engine oil filter installation hole is designed to facilitate the replacement of the filter.

8. Increase the bucket flip angle for more thorough unloading.

9. Use a cast bracket, and the device strength is higher.

10. Add a parking lock device to make the vehicle safer.

11. Add a hydraulic tank cap protection device to prevent the tank cap from falling off during movement.

12. The engine hood is stamped, with a beautiful appearance and reliable protection of the engine and accessories.

13. Reasonable layout of oil circuit, convenient for maintenance.

14. The oil pipe is hidden and equipped with a pipe cover to prevent sun exposure and weathering.

15. The oil pipe joint at the front of the bucket cylinder is protected by a cover plate.

16. The vehicle running device is protected by a cover plate, which is beautiful and safe.

17. Bucket floating function.

18. The auxiliary oil pipe guide frame design is safer to use.





Item	Metric	Inch
Angle of departure (A)	25°	25°
Loading position (B)	191mm	7.5 inch
Unloading angle (C)	45°	45°
Max dump height (D)	1610 mm	63.4 inch
Unloading distance(E)	605 mm	23.8 inch
Ground clearance(F)	128 mm	5 inch
Max. lifting height of bucket (L)	2719 mm	107.1 inch
Max. lifting height of the arm (H)	2155 mm	84.8 inch
Total length (without bucket) (J)	2278 mm	89.7 inch
Total length (with bucket) (K)	2835 mm	111.6 inch
Total width	1035 mm	40.8 inch
Total height (I)	1670 mm	65.8 inch
Turning radius (P)	1528 mm	60.2 inch
Bucket width (S)	1140 mm	44.9 inch
Rubber track width	200 mm	7.9 inch

Engine	Model		Kubota D1105
	Rated power		18.2KW/25HP
	Fuel/cooling method		Diesel/ Water cooling
	Rotating speed(rpm)		3000
	Torque		71.5 N.m (2200rpm)
	Number of cylinders		3
	Displacement		1.1
	Fuel tank capacity		33L
Hydraulic System	Hydraulic pressure(Mpa)		21
	Hydraulic oil tank capacity		30L
	Walking pump flow		61.6L/min
	Working pump flow		47.6L/min
Performance parameters		Metric		inch
	Load weight (kg)	475 Kg		1047.2 lb
	Tipping capacity	1100 kg		2425 lb
	Bucket capacity	0.12 m3		4.26 ft3
	speed	0-10Km/h		6.2 mile/h
	Operating weight	1780kg		2612.5 lb
