Forklift Diesel 7 Tons

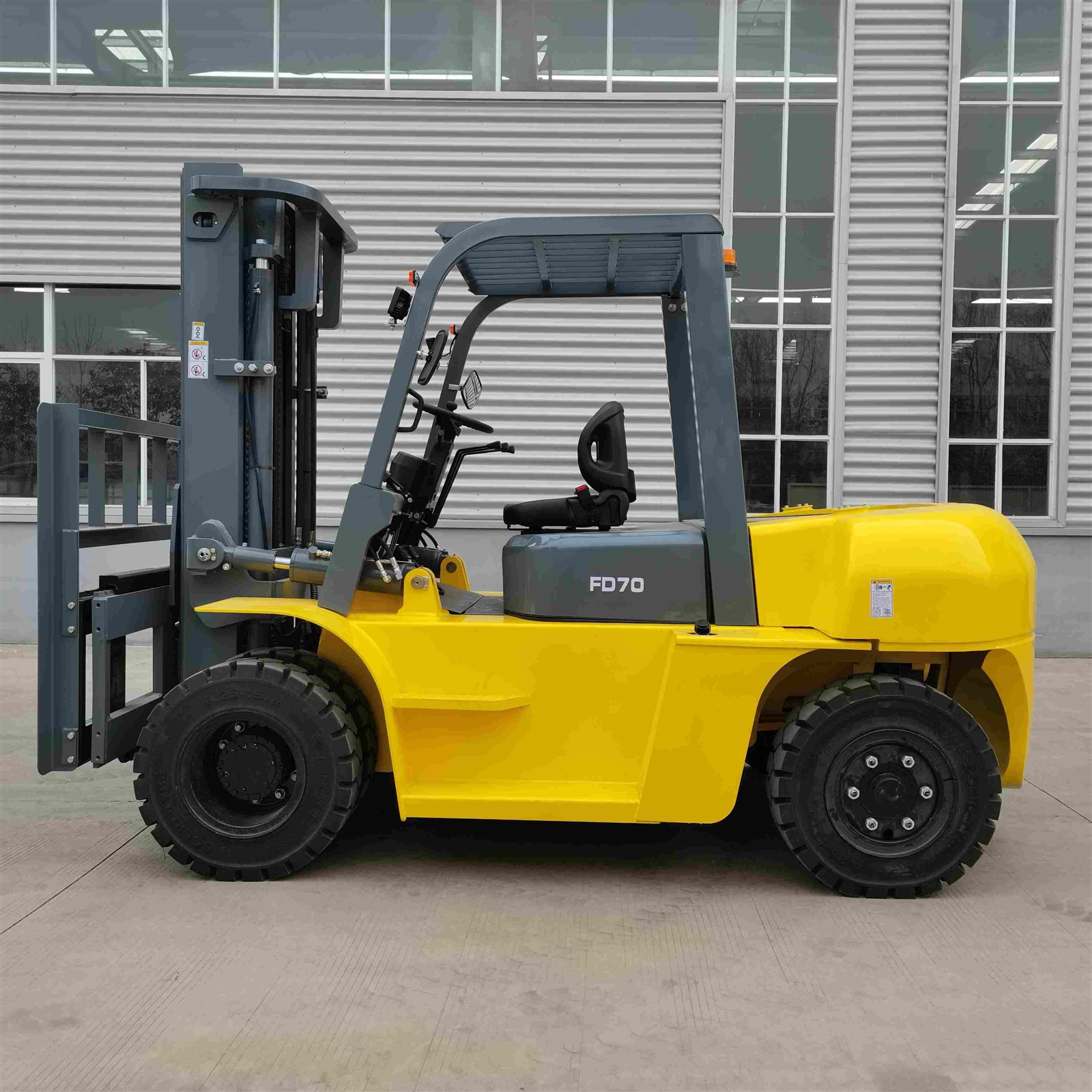

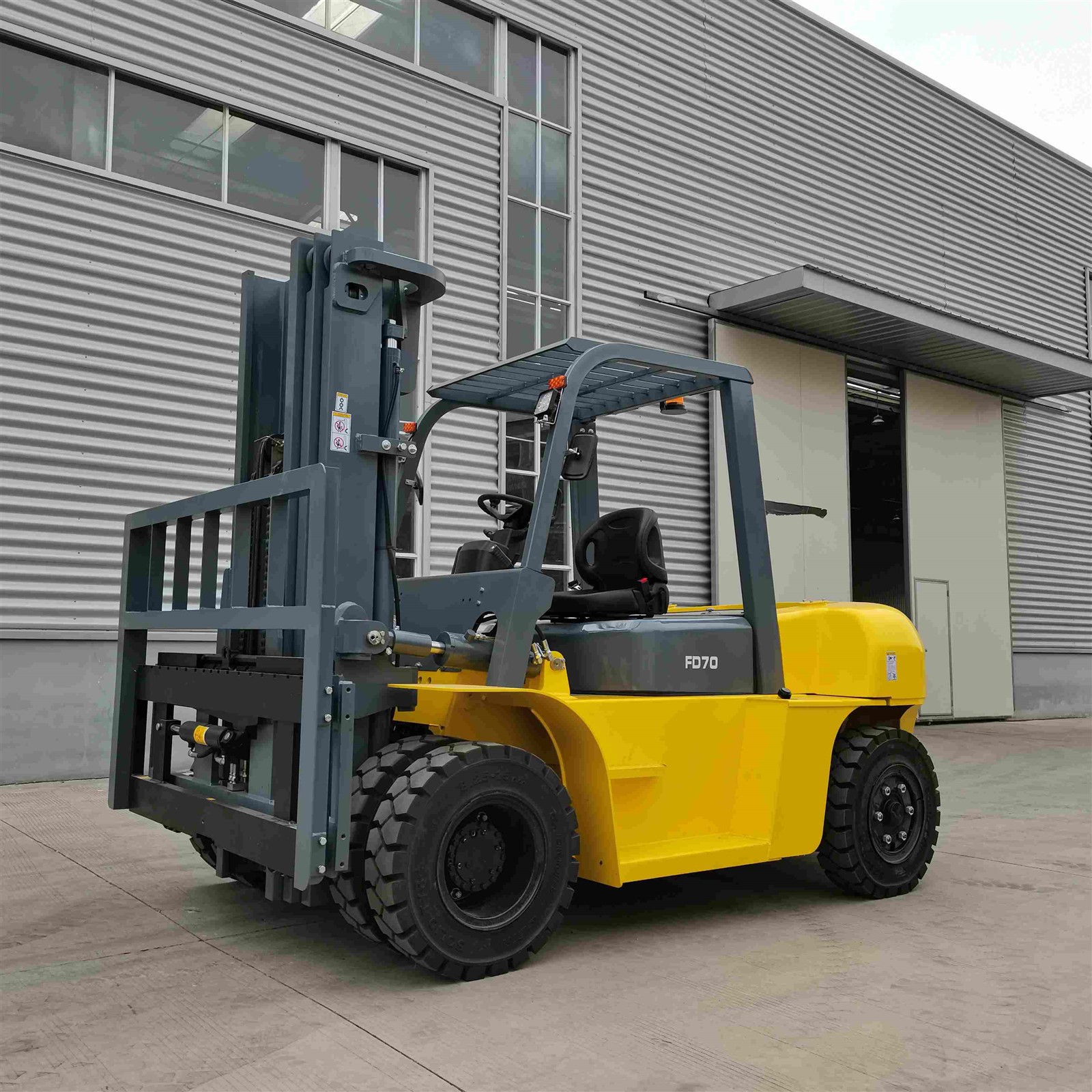

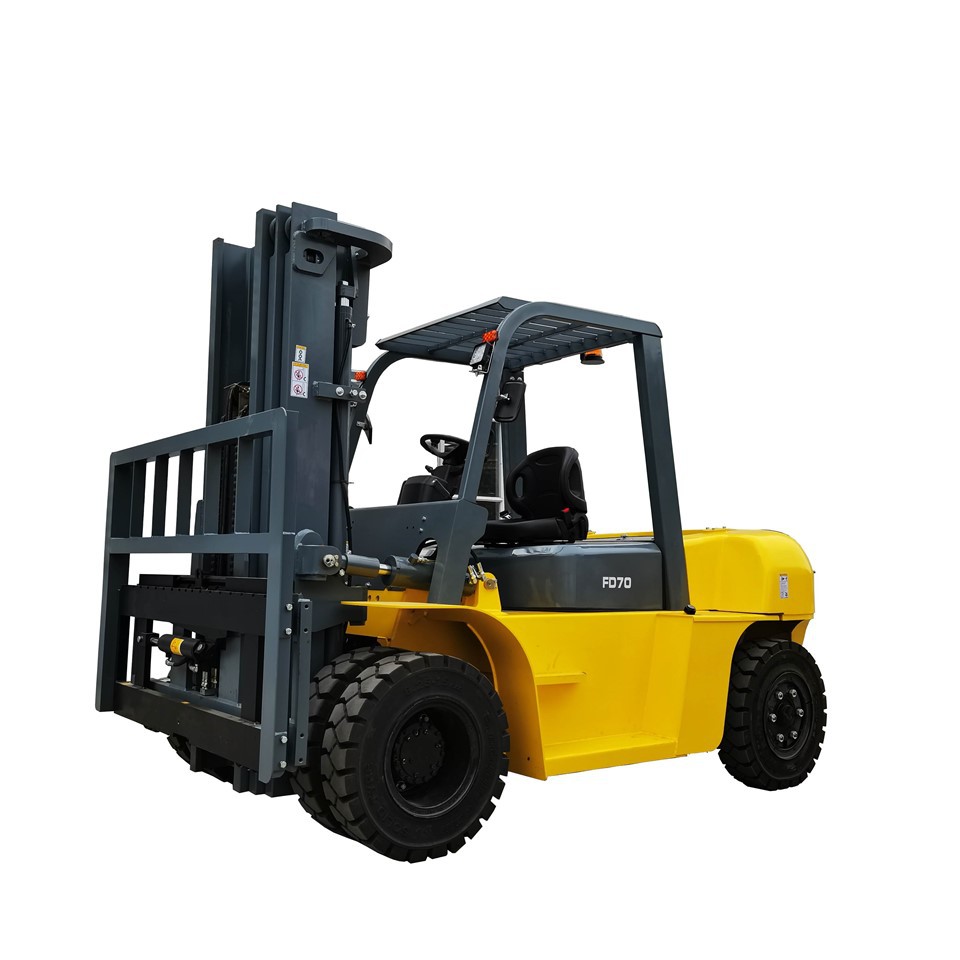

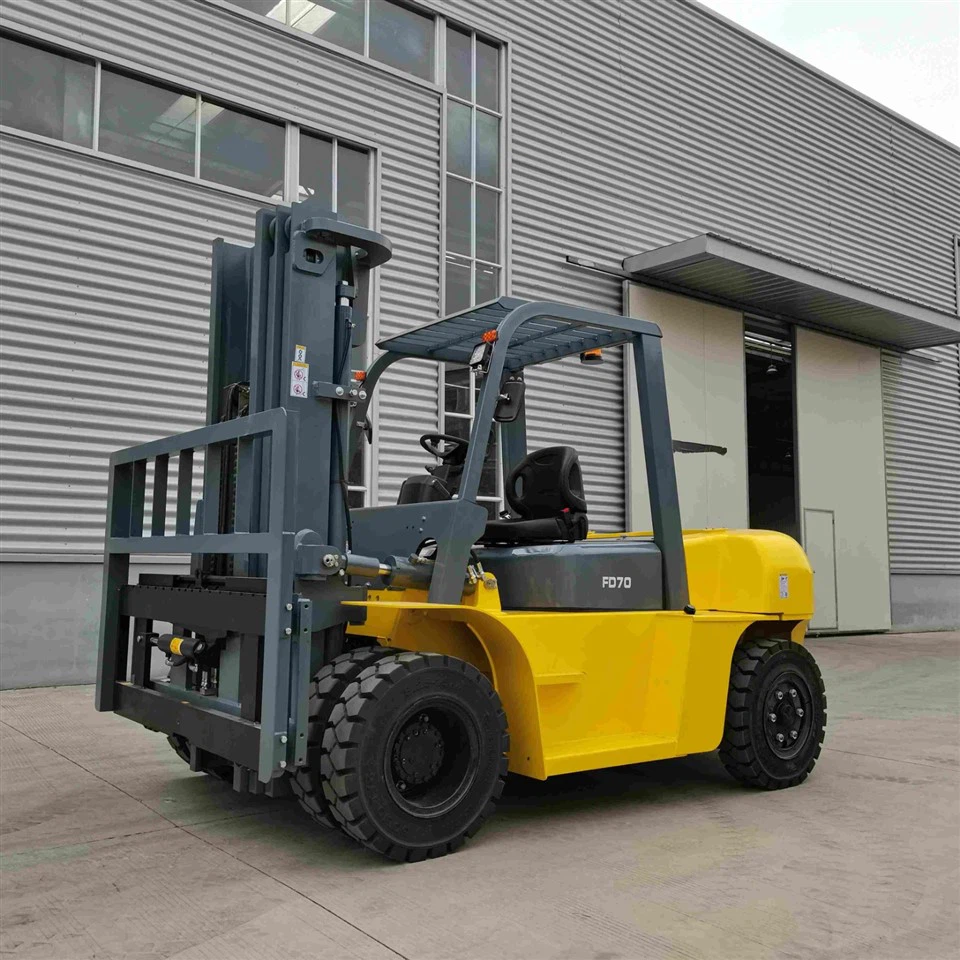

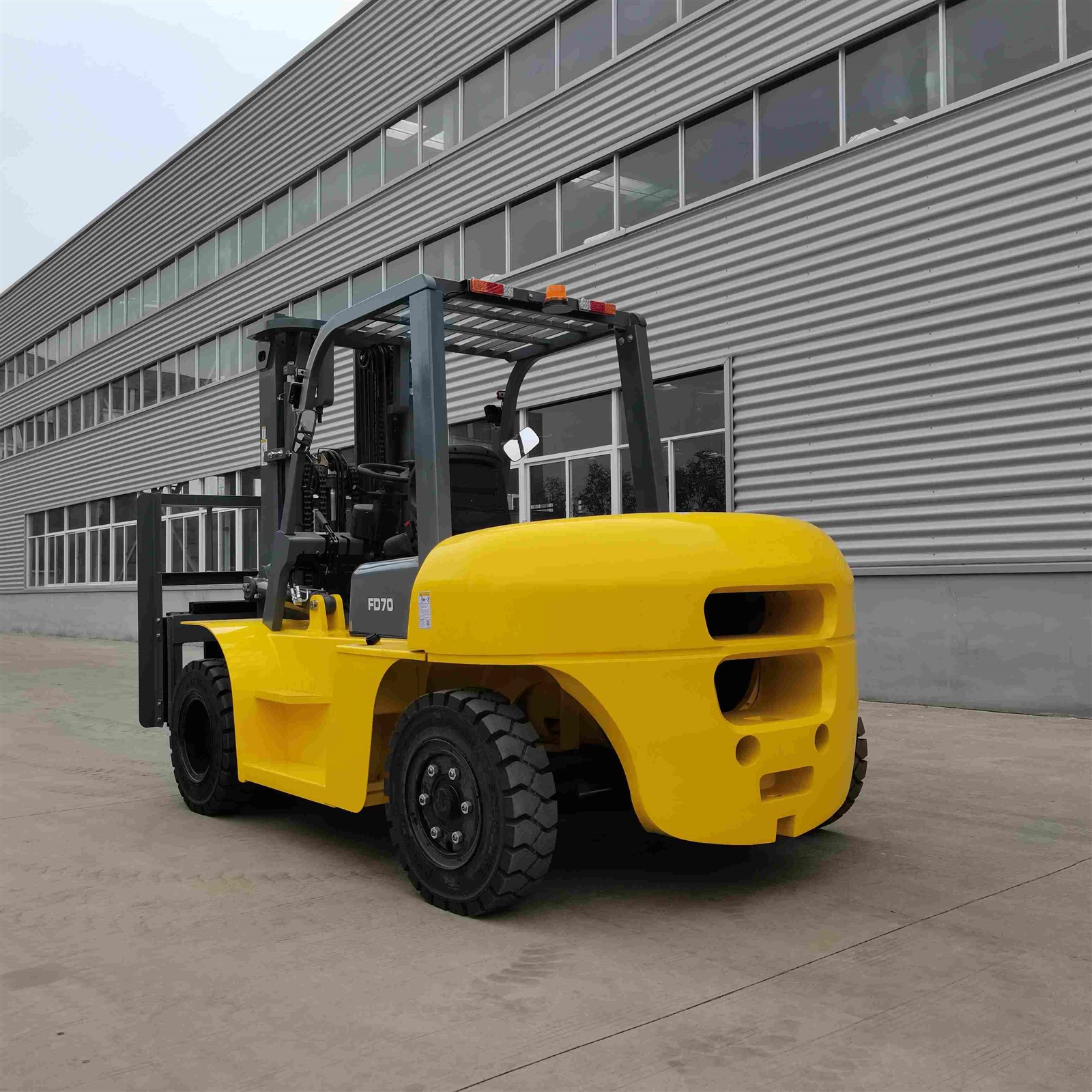

7 Ton Diesel Forklift FD70

Rated Capacity 7 Ton

Lifting Height 3000 mm



The hood can be opened at an angle of up to 70°, greatly expanding the maintenance operation space. Whether it is engine maintenance or line troubleshooting, it can be completed efficiently, significantly shortening the maintenance time

Equipped with an intelligent LCD instrument, it synchronizes key data such as engine speed, fuel consumption, fault code, etc. in real time through the CAN bus (controller area network), and the forklift operation status is visualized

The intercooler, dispersed water tank, and oil disperser are designed to be installed independently in partitions to avoid the heat dissipation interference problem of the traditional integrated layout, effectively reduce the operating temperature of core components such as the engine and gearbox, and improve the stability and durability of the power system.

The engine adopts double protection to isolate dust particles in the air, ensure combustion efficiency, and extend the service life of the engine.

The engine compartment structure is optimized with sound insulation materials to achieve secondary noise reduction effect; the exhaust system adopts a low resistance design to reduce noise while reducing power loss, taking into account environmental protection and performance requirements.

Equipped with a gear start lock function, the start button is automatically disabled when the forklift is in gear, eliminating the gearbox impact caused by misoperation, ensuring operation safety from the source, and extending the service life of the transmission system.





Model			FD70
Power Type			Diesel
Rated Capacity		kg	7000
Load Centre		mm	600
Lift Height		mm	3000
Fork Size(L×W×T)		mm	1220×150×70
Mast Tilt Angle(F/R)		Deg	6°/12°
Front Overhang (Wheel center to fork face)		mm	595
Ground Clearance(Bottom of mast)		mm	200
Turning Radius (outside)		mm	3350
Max.Gradeability (No load/Full load)		%	20
Wheelbase		mm	2250
Service weight		kg	9750
Overall Dimension	Length to face of fork(Without fork)	mm	3565
	Overall Width	mm	2010
	Mast Lowered Height	mm	2500
	Mast Extended Height(With backrest)	mm	4415
	Overhead Guard Height	mm	2430
Speed	Travel (Full load)	km/h	30
	Lifting (Full load)	mm/s	460
Tire	Front	mm	8.25-15-14PR
	Rear	mm	8.25-15-14PR
Battery	Voltage/Capacity	V/Ah	(12/80) x 2
Engine	Model		6BG1-02	6110
	Manufacture		ISUZU	XICHAI
	Rated output/r.p.m.	kw	82.4/2000	83/2000
	Rated torque/r.p.m.	N·m	416/1600	450/1400-1500
	No.of Cylinder		6	6
	No.of Cylinder	mm	105×125	110x125
	Displacement	cc	6494	7120
	Fuel Tank Capacity	L	125	125
Transmission	Type		Hydraulic	Hydraulic
	Stage(FWD/RVS)		2/2	2/2



With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
