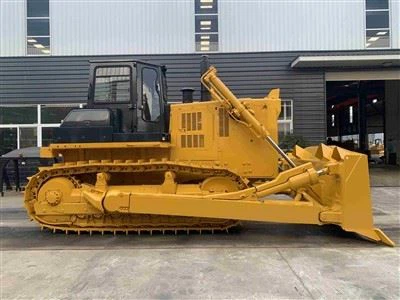

New Agricultural Mining Bulldozer 320hp



Power: 320 hp CUMMINS

Operating weight: 37.2 Ton

Dozing capacity: 10 m³





JSJ32 crawler bulldozer, carries out standardized mass production of high-power bulldozer. The whole machine adopts advanced hydraulic transmission, hydraulic control technology, advanced and reasonable structure, light and flexible operation, quality and reliable.





•A CUMMINS NTA855-C360S10 engine which can gives you more power and reliability you need.

•The highly reliable power shift transmission, stable torque converter and the two-stage straight-tooth structure final drive transmit power efficiently.

•With independent engine cooling water tank, chassis oil cooler, water and air intercooler provides excellent cooling performance and simple maintenance operation to ensure continuous operation of the machine.

•The main frame of the full box structure adopts steel plate welded full box type integral structure, which is welded with the rear axle box. It has high impact load bearing capacity and resistance to bending and twisting. High quality weld seam ensures the main frame has a full life cycle.

•The final drive is driven low and provides more powerful driving force and efficient gradeability. The crawler-type walking chassis has reached the international advanced level and is suitable for various complicated working conditions, with high reliability and carrying capacity.

•The standard straight tilt blade features powerful cutting force and the optional three-shank ripper can be equipped for the ripping of clay and frozen earth, featuring high working efficiency and super-strong penetrating force





Model	JSJ32
Type	320HP Standard Hydraulic Crawler Type
Engine model	CUMMINS NTA855-C360S10
(L)Displacement	14.01
(kw/rpm)Rated power	257/2000
m/rpm)Max.torque	1400/1440
Operating weight	37.2 Ton
(mm) Dimension(no ripper)	6880×4150×3688
(mm) Grounding length	3150
(MPa) Ground pressure	0.105
(mm) Track gauge	2140
(m³) Dozing capacity	10
(mm) Blade width	4150
(mm) Blade height	1592
(mm) Max drop below ground	560
(mm) Track shoe width	560
(mm) Pitch	228.6
Quantity of track link(each side)	41
Quantity of Carrier rollers(each side)	2
Quantity of Track rollers(each side)	7
(MPa) Max pressure	14
L/min Discharge	355
(KN) Max tractor force	280
(Km/h) Forward Speed	F1:0-3.6
	F2:0-6.6
	F3:0-11.5
(Km/h) Rear Speed	R1:0-4.4
	R2:0-7.8
	R3:0-13.5

Notice : Material and specifation are subject to change without notice , Feature machine in photos may include additional equipment
